Magnelite (ML) igniter kits

Tired of seeing your rocket motor fail to ignite? Then it’s time for Magnelite. Available in kit form. No hazmat fee! Lead Free. Does not require a LEUP to store the left over pyrogen! Make several electric matches in just minutes. Magnelite dipped e-matches are designed for rocket motor ignition.

ML-KIT includes the necessary mixing tools, acetone, instructions and chemicals to make 40 grams of pyrogen. This is enough pyrogen to make an estimated 900 non-folded ML-12 electric matches at a cost to you of just under $0.95 a piece! This highly reliable electric match is great for all your motor clustering needs, no more need for thermolite!

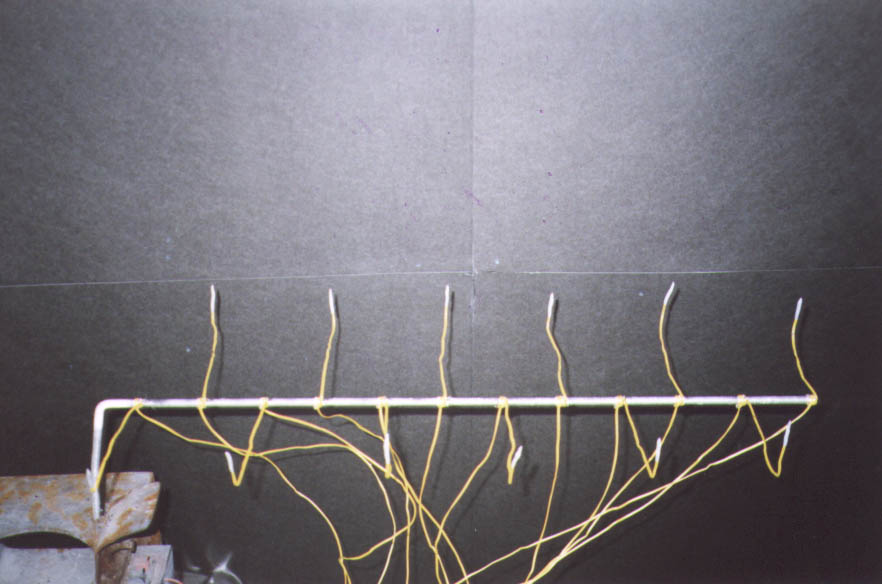

12 ML-24's wired to fire simultaneously.
Click for a larger view

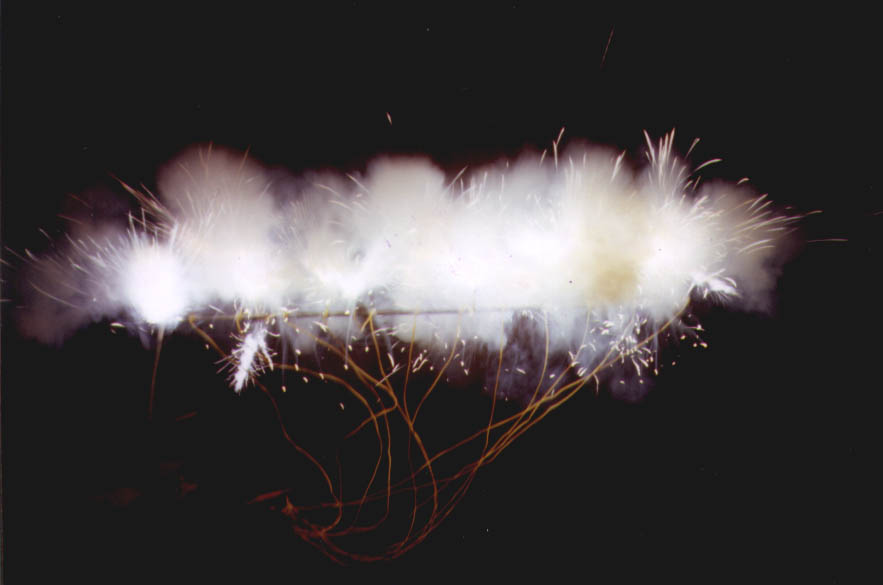

The 12 ML-24's fire with enough heat
to ignite ANY motor cluster!

Click for a larger view

The igniters in this photo are being remotely fired using a car battery and Ford starter fender mount relay.

Video of 4 igniters being fired simultaneously.

Video of a Human Body Model test SMT5.1 being performed on an ML-12 electric match.

Because of our new formulated mixture this electric match will reliably fire every time even on the most humid of days. Once ignited the pyrogen burns for approximately one second at a temperature around 5,400 degrees Fahrenheit! Amperage requirement for successful ignition is 5 to 6 amps at 12 volts DC per igniter. Caution: if you are going to ignite a cluster of motors make sure the launching system can instantly deliver enough amperage. Example: 6 igniters x 6 amps each = 36 amps needed to reliably ignite all 6 igniters.

Each match ohms out at 0.8 ohm (+) or (-) 0.2 of ohm, no guess work here, unlike some other brands.

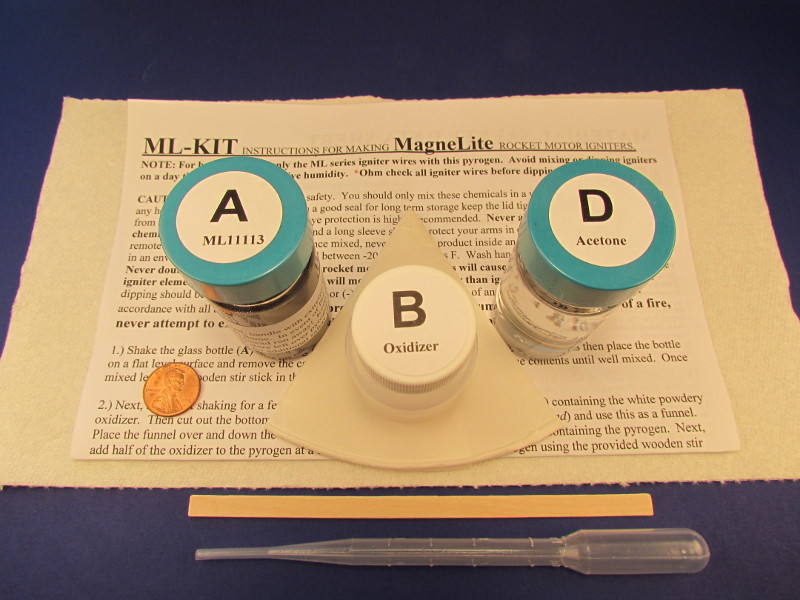

Pyrogen Kit (ML-KIT) - Now includes acetone too.

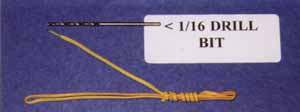

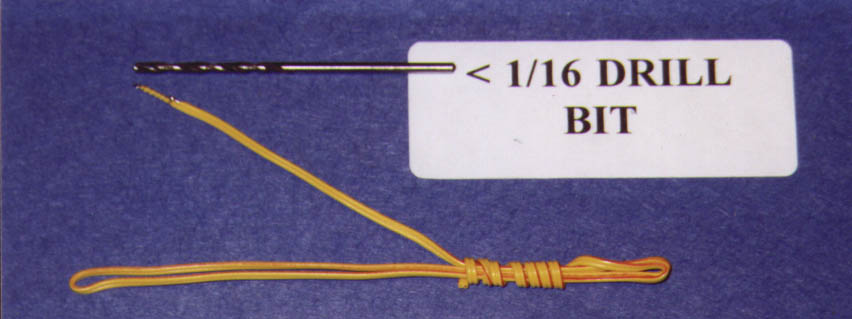

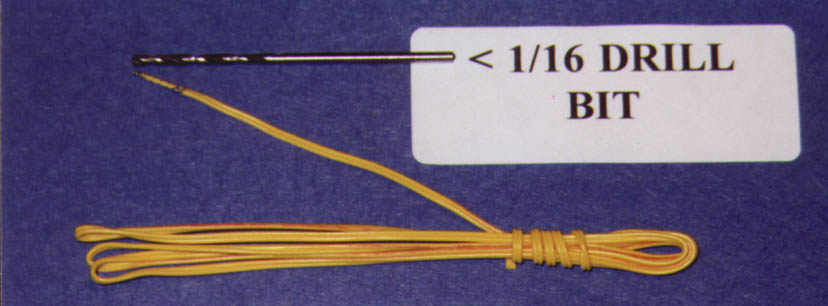

ML-12 for E and F composite motors and
A black powder motors on up

Click for a larger view



ML-24 for G - I composite motors
Click for a larger view

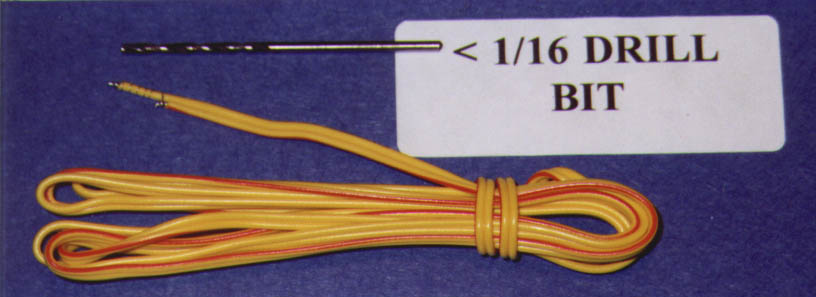

ML-48 for J - K composite motors and up
(recommend at least a double fold)

Click for a larger view

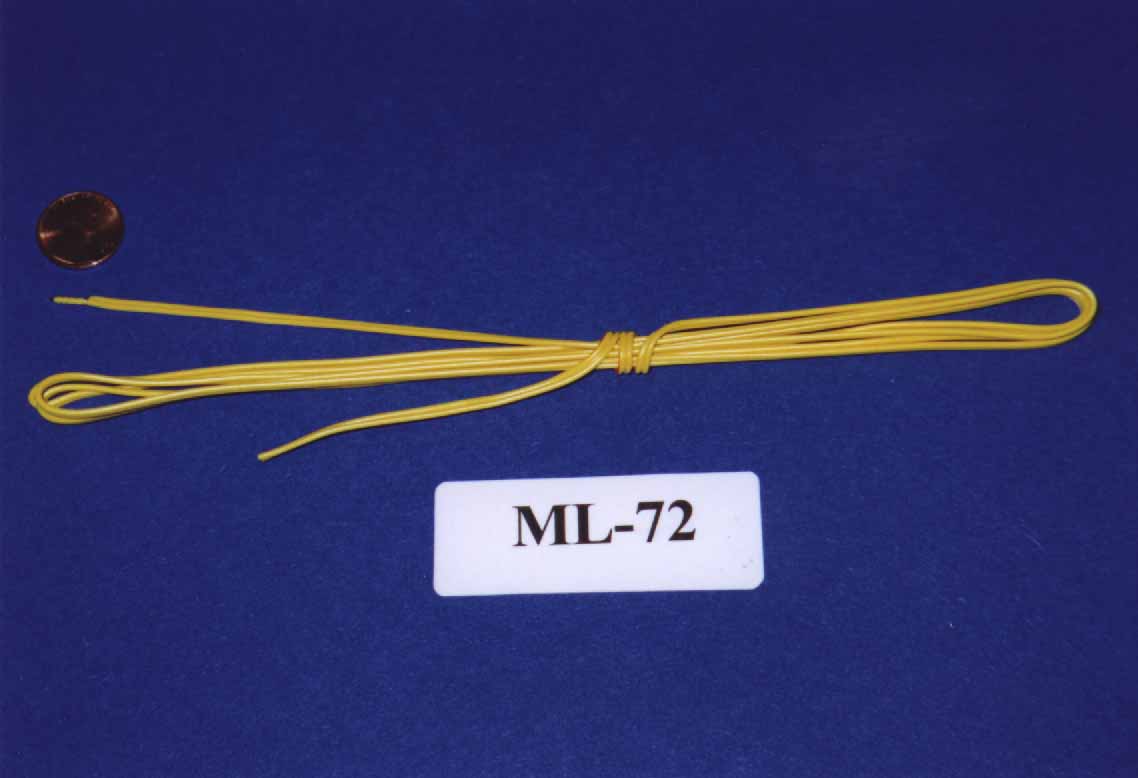

ML-72 for M - P composite motors and up
(recommend at least a triple fold)

Click for a larger view


For second stage ignition we recommend using the Transolve T2 two-channel timer. This timer can handle up to 10 amps.

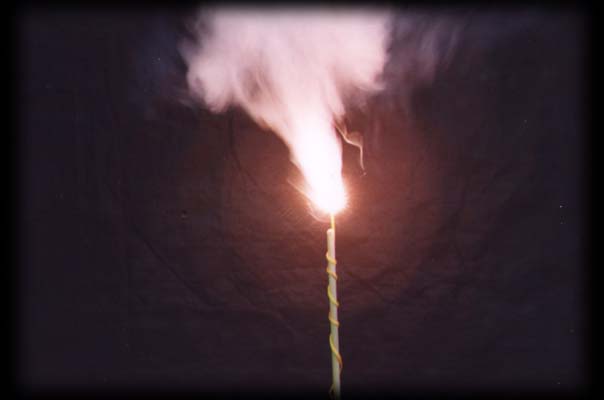

The photo above was taken just after the fire button was pressed on an ML-24 that was wrapped around a 3/8 inch diameter rod.
