Manufacturer of extremely high temperature and very reliable pyrogen
kits and electric match wires for use by the Department of Defense, (CCR
CAGE CODE: 7UP72) Hobby Rocket enthusiast, Fire
Suppression Industry, Lighting and Stage effect companies, Private
Commercial Rocket companies, Labs and Universities.
For US Military related products please click here. Thank you.
NEW PRODUCT: HTCF-12
Finally an e-match that outputs high thermal energy (5,400F) for things other than rocket motors. Click this link for more information.
*VERY SMALL 30 AWG TWISTED PAIR IGNITER WIRE*
The CFS-12 - measures only .037 inches in width and is small enough in
diameter to fit many composite rocket motors ranging from D through G. We recommend the CF pyrogen kit be used with this igniter wire for making extremely reliable rocket motor igniters. The CF-KIT all fire rating is
2.3 amps @ 6 VDC. Click HERE for pictures and ordering information.

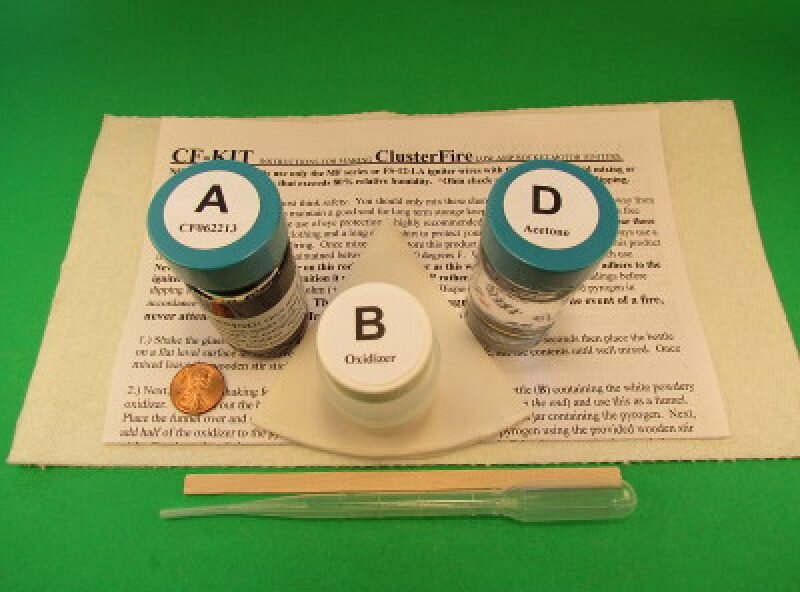

ClusterFire (CF) Pyrogen Kit
The CF-KIT allows you to make extremely reliable low amp high temp (5400F)
rocket motor igniters using our low amp CF series igniter wires. Requiring only 2.3 amps @ 6 volts DC you can now reliably launch
rockets with up to 12 rocket motors at a time using most 12 volt powered
launching systems capable of delivering 30 amps. The CF-KIT includes all
the necessary pre-measured chemicals, mixing tools and instructions to
make 40 grams (1.4 oz) of pyrogen. This is enough pyrogen to make 100's of
CFS-12, CF-12, CF-24 or CF-48 igniters with no fold. Pyrogen, and thinner come sealed in glass lab grade bottles with
thermoset PTFE lined caps for years of storage without worry of evaporation. To see a video of 60 CF-48 igniters being fired in parallel using our 24
volt 500 amp MagneBlaster click HERE.
|
Our Products: the HOTTEST electric match kits available on the
market!
|
|

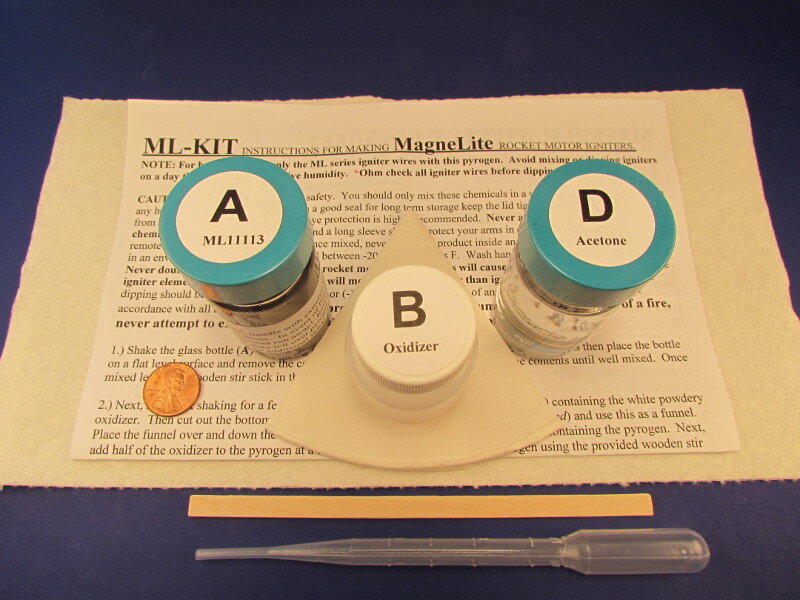

Igniters: ML Series (MagneLite) |
|
LOW AMP CF Series (ClusterFire) |
|
-
Dip your own extremely reliable igniters.
-
Long hot burn at 5400F.
-
All-fire current 6 amps @ 12.0V DC.
-
Capable of firing AP engines from 29mm up to Q and beyond,
and any BP engines.
-
Great for clusters when using a high current ignition system like the MagneBlaster
-
This product does not contain any lead, mercury, sulfur, sulfides or phosphorus.
-
Pyrogen, and thinner come sealed in glass lab grade bottles with
thermoset PTFE lined caps for years of storage without worry of evaporation.
|
-
Dip your own extremely reliable
ematches or rocket motor igniters.. -
Burns for approximately .5 seconds at 5,400 degrees F.
-
Great for ejection charges.
-
Works great with most onboard altimeter or timer based ignition systems that use a 9 volt lithium power source. NOTE: Capacitive discharge systems are not recommended. To view a list of firing devices that work with this product please visit our FAQ section.
-
All-fire current 2.3 amps @ 6V DC when used with our CFS-12, CF-12, CF-24 or CF-48 igniter wires.
-
This product does not contain any lead, mercury, sulfur, sulfides or phosphorus.
-
Pyrogen and thinner comes sealed in glass lab grade bottles with thermoset PTFE lined caps for years of storage without worry of evaporation.
|
Copyright 1993 by William Safford,
used by permission.
Liftoff on 12
Rocketflite F50SS Silver Streak motors.
The 25 foot exhaust plume was designed to resemble the Space Shuttle's
solid rocket boosters.
The Nighthawk flying on seven
Rocketflite F104SS
| |
Don't see what you need?
We can make custom electric match wires and pyrogen formulations to meet most
requirements.
Just
contact us! |
DEALERS!
Rocketflite is looking for international dealers.
For more information
click here
We proudly support the
Pyrotechnics Guild International - Fireworks
